My camera's time of day clock was running 13 sec behind the actual time of day on the morning of February 1. When the clock on the video rolls over to "8:00" the actual TOD is 8:00:13 a.m. CST. The time for the first frame containing Columbia is therefore 13:59:44 GMT and not 13:59:59. The final frame in which Columbia is visible occurs at 14:00:38 GMT. The methods that I used to calibrate the camera's TOD clock are described in a later section. The 13:59:44 time is supported by the directional information described in the next section. A "geometrical" argument against the 13:59:59 time is suggested in a later section.

From what I understand, the 13:59:59 number was arrived at primarily, if not entirely, by matching an event or events documented in my video with the same event documented in a second video containing GPS time stamping. This second video would almost certainly have to have been from the forward looking infrared targeting system on the Apache helicopter at Ft. Hood. However, the CAIB's March 17 "STS-107 Accident Investigation Ground Track, Events Summary, and Sighting Data" map suggests that the two videos' overlap for only 1 or 2 seconds at the very end of my video's coverage of Columbia when it is far away, the camera is zoomed out, and the image is at a very poor resolution. It is possible that events in the Apache video were matched to a third video, which was in turn matched to mine. Either of these procedures seems to offer ample opportunity for mismatching which could explain the error. The Apache's FLIR GPS clock also might have been inaccurate or malfunctioning. It would be interesting to know if it was checked against any other standard.

Local television station WFAA was broadcasting live Columbia's passage south of the DFW area. This video was professionally made and has, as I recall, lengthy coverage at a good resolution. It would necessarily be timed accurately. It is not represented on the Ground Track and Events Summary map. Perhaps it is the video numbered EOC2-4-0118 that is referred to in the CAIB's March 10 Rev 15 Master Timeline. I am not sure to what extent, if any, it has been used in the video analysis. In any event, it would seem potentially to be a good candidate for resolving differences of opinion over timing.

The azimuth component of my camera's initial line of sight to Columbia from my position at 32.6… N, 96.8… W was due west — 270 degrees geographic and not the approximately 250 degrees depicted on the CAIB's Ground Track and Events Summary map, or even something in between. This can unambiguously be determined using ground structure visible in the first frame containing Columbia.

Columbia's ground track lay at 280 degrees from me at 13:59:30.7 GMT, the time of its last telemetered GPS location. At that time it was at a distance of 128 miles from me and known to be traveling east by southeast (i.e., on a geographic heading of about 110 degrees). It is difficult to contrive an estimated extension of the ground track from this last known location that would have Columbia lying at 270 degrees at 13:59:59 while not having it pass overhead of me, which it did not do.

When Columbia was due south of me its elevation was, by my later estimation using ground structure references, greater than 45 degrees but much less than 90 degrees. At an altitude of 38 mi (200,000 ft), if its ground track when it was due south of me was -- as is implied by every ballistic model, debris footprint/recovery map, and estimated ground track that I have seen -- 30 miles away, then by calculation its elevation was 52 degrees.

By my observation, then, Columbia's ground track passed from the west to the southwest to the south to the southeast of me. As an eyewitness to the event -- an eyewitness who, like others, paid particularly close attention since I was photographing it -- I am confident that Columbia's actual ground track after telemetry was lost was quite close to and not significantly north of the estimates that have been made public, including the CAIB 's March 17 Ground Track and Events Summary map.

Assuming, based on these arguments, that the various (and quite similar) projected ground tracks/debris footprints for Columbia that have been made public are all essentially the same as its actual ground track on February 1, then by the hypothetical ballistic model ground track as represented on the Ground Track and Events Summary map my estimated AOS would be 13:59:46, consistent with the 13:59:44 time noted in the section above.

Significantly, the time when Columbia was due south of me as documented in the video using the 13:59:44 AOS and the time when it was due south of me based on the hypothetical ballistic model ground track as represented on the Ground Track and Events Summary map are both 14:00:09 GMT. In other words, the 13:59:44 AOS supports the ballistic model very well, while the 13:59:59 AOS does not.

Columbia's image -- or more accurately the appearance on video of its plasma envelope and trail, and its smoke trail (which varied from very thin to quite thick) -- changed orientation depending on where the orbiter was. Although I have no experience in photogrammetry, it would seem to me that this information, combined with information about the location of photographers and a half-way decent estimated ground track, could aid in determining timing. Consider video EOC2-4-0024 made from Arlington, TX. The plot on the CAIB 's Ground Track and Events Summary map of this video's coverage does not appear to match up with what is actually seen in the video. When the trail of Columbia's passage through the sky is seen to be horizontal in the video frame, enough time has passed since the presumed 14:00:00 start time of the video that the orbiter must be considerably to the southeast of the photographer. Assuming that the photographer was holding his camera plumb, the trail through the sky should be seen at this point as angled down toward the eastern/southeastern horizon, and not horizontal. For it to be horizontal it would seem that the orbiter would have had to have been climbing, a highly unlikely circumstance. The same general argument can be applied to my video.

I did not calibrate/sync my camera's clock to a GPS source. Thus my calibration may be off by +/- a second as opposed to +/- milliseconds. At no time during the procedures described below did I make any adjustment to any settings on the camera.

At about 10:15 a.m. CST on February 1, using a stopwatch, I compared the difference between the minute rollover on my camera's TOD clock and the same minute rollover on the clock on my cable TV converter box (which I have found in the past to be very stable and reasonably accurate). By this method the camera clock was 11 sec behind the cable converter clock. On February 2 it occurred to me just to tape the cable converter clock with the camera time and date display turned on. I made three of these comparisons spread over several hours and included them with the VHS dub of my video that I sent to JSC on February 3. Over subsequent days I made more of these comparisons, and I discovered that my camera's TOD clock was not stable (although it was always behind the cable converter clock). This made it apparent that the 11 sec difference measured on February 1, shortly after the events recorded on the video had occurred, was the best measurement to use.

Next I made several comparisons of the cable converter clock to various cable television sources. For instance, I taped The Weather Channel (which has a continuous display of time of day to the second) and my cable converter box simultaneously. These measurements showed that the cable converter clock was consistently running 2 sec behind cable television time sources. On February 6 I tuned WWV (the National Bureau of Standard's shortwave broadcast of time of day) on a shortwave receiver, and by ear and eye determined that the cable converter clock was also 2 sec behind WWV. The 11 sec difference between the camera's clock and the converter box clock plus this 2 sec accounts for the 13 sec difference between the camera's clock and the actual time of day mentioned in the first section above.

(Tables and figures from the Columbia Accident Investigation Board's final report:

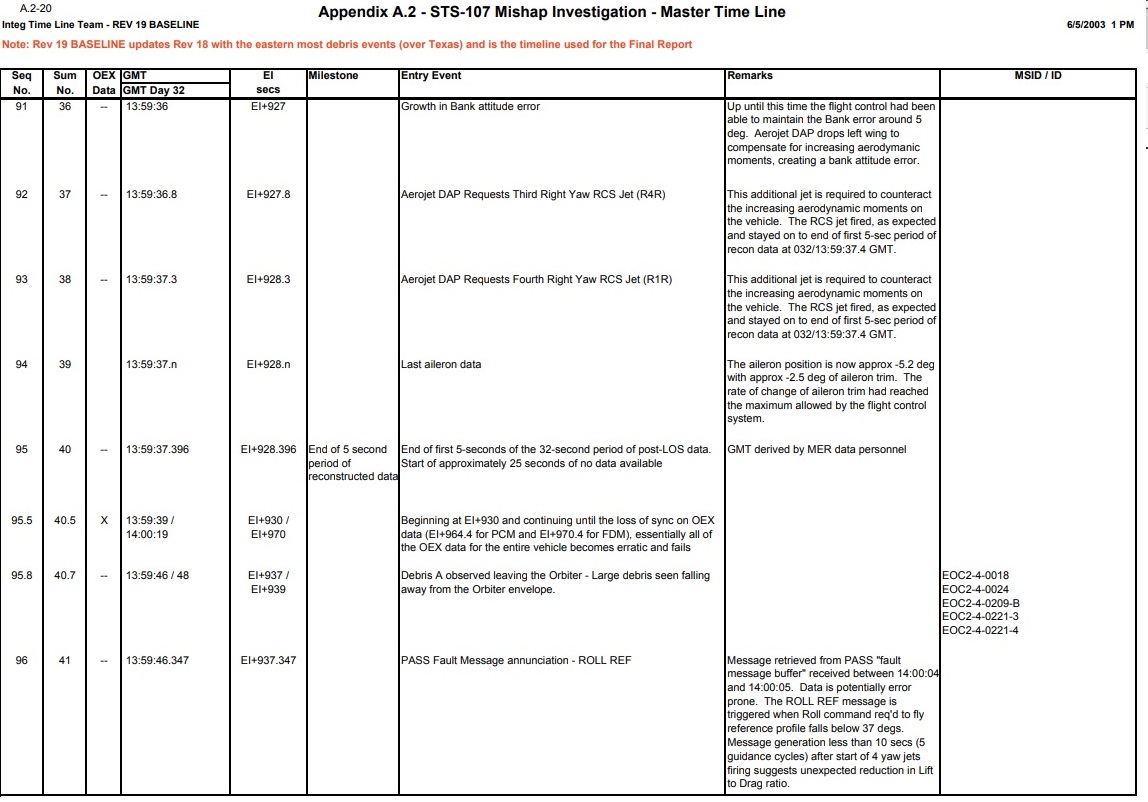

Figure 1 is a table to be found in supplemental material Volume 2, Appendix D9, page 284, and shows correct timing for the "Debris A" entry event captured by, among others, video EOC2-4-0018 (see next-to-bottom item in table). The indicated time range obviously is earlier than the — incorrect — start time for the video originally claimed by the investigation.

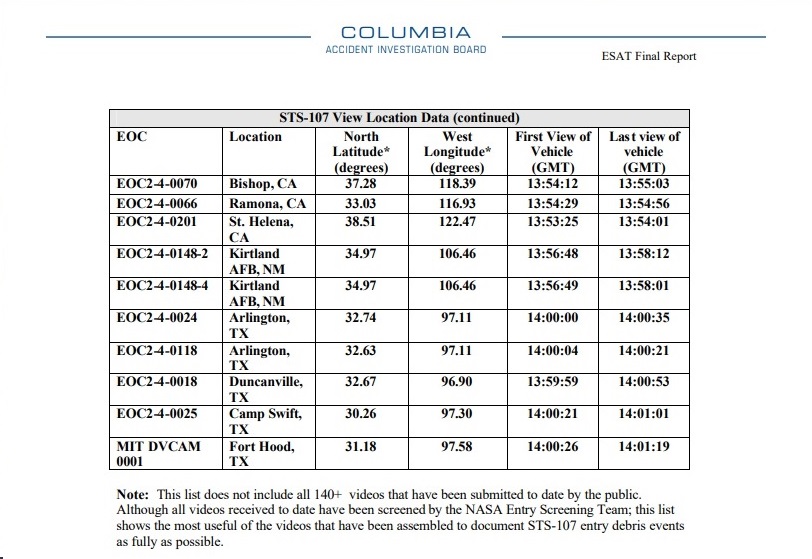

For comparison, Figure 2 is a table to be found in Volume 3, Appendix E4, page 190, and shows the incorrect 13:59:59 GMT start time for video EOC2-4-0018. Timing for all events subsequently noted (not illustrated here) are consequently also incorrect.

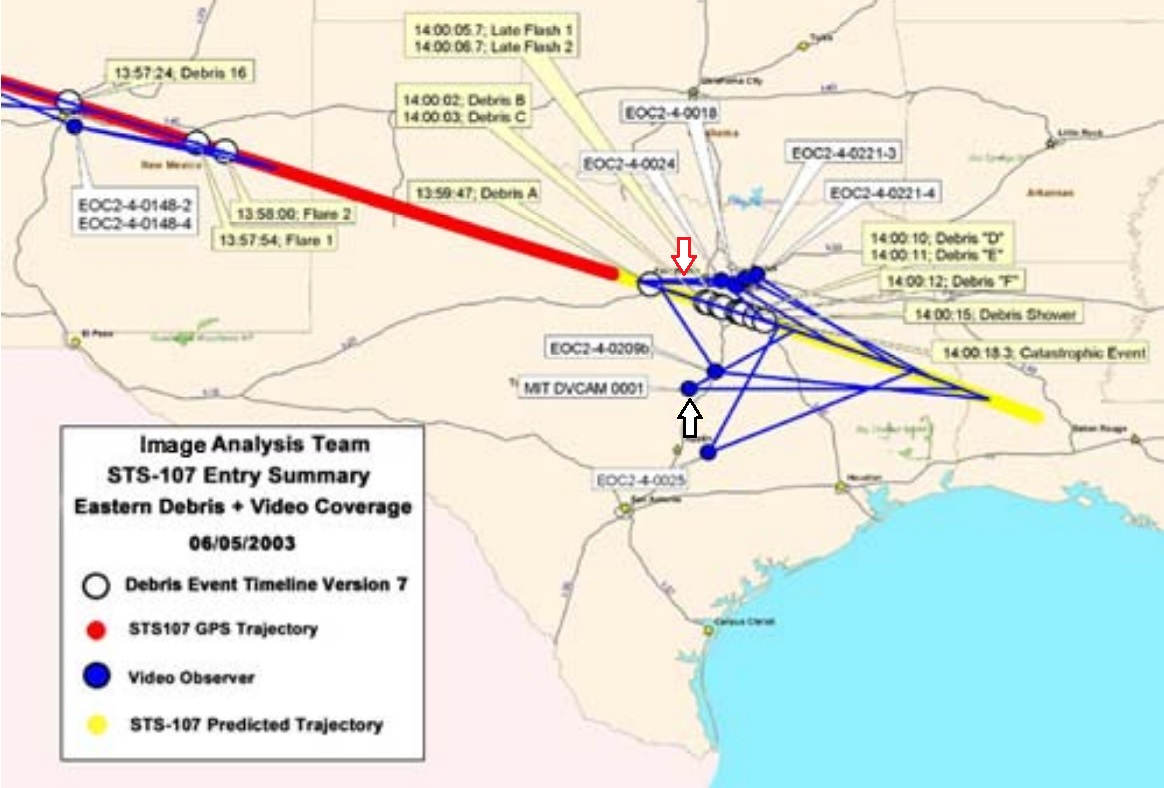

Figure 3 is a map to be found in Volume 3, Appendix E2, page 103, and shows the correct range of view for video EOC2-4-0018. Its initial viewing direction is the blue line indicated by the red outline arrow. The Apache helicopter range of view is designated by the blue lines radiating from the blue dot indicated by the black outline arrow.

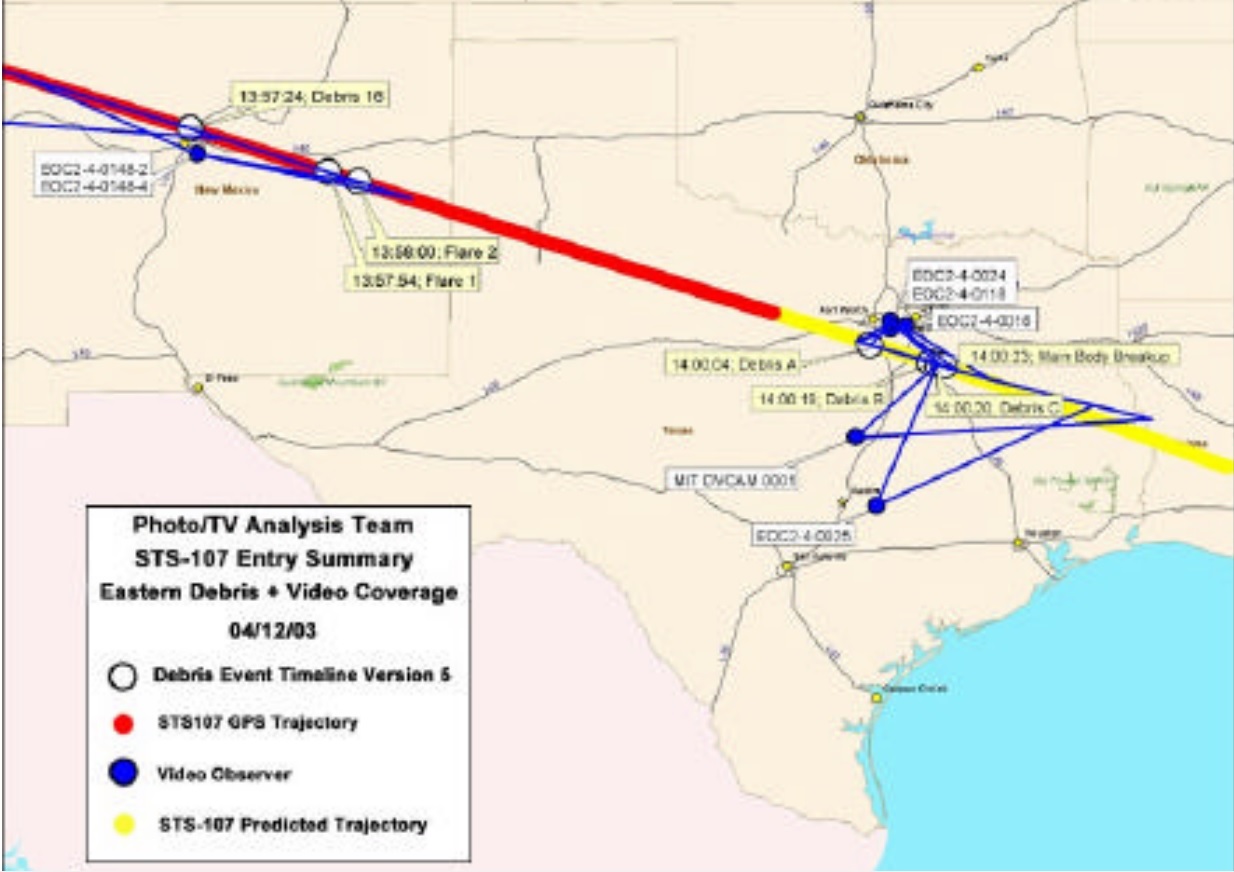

For comparison, Figure 4 is a map to be found in Volume 3, Appendix E4, page 197, and shows the erroneous viewing directions for EOC2-4-0018 plus other videos including the one from the Apache.

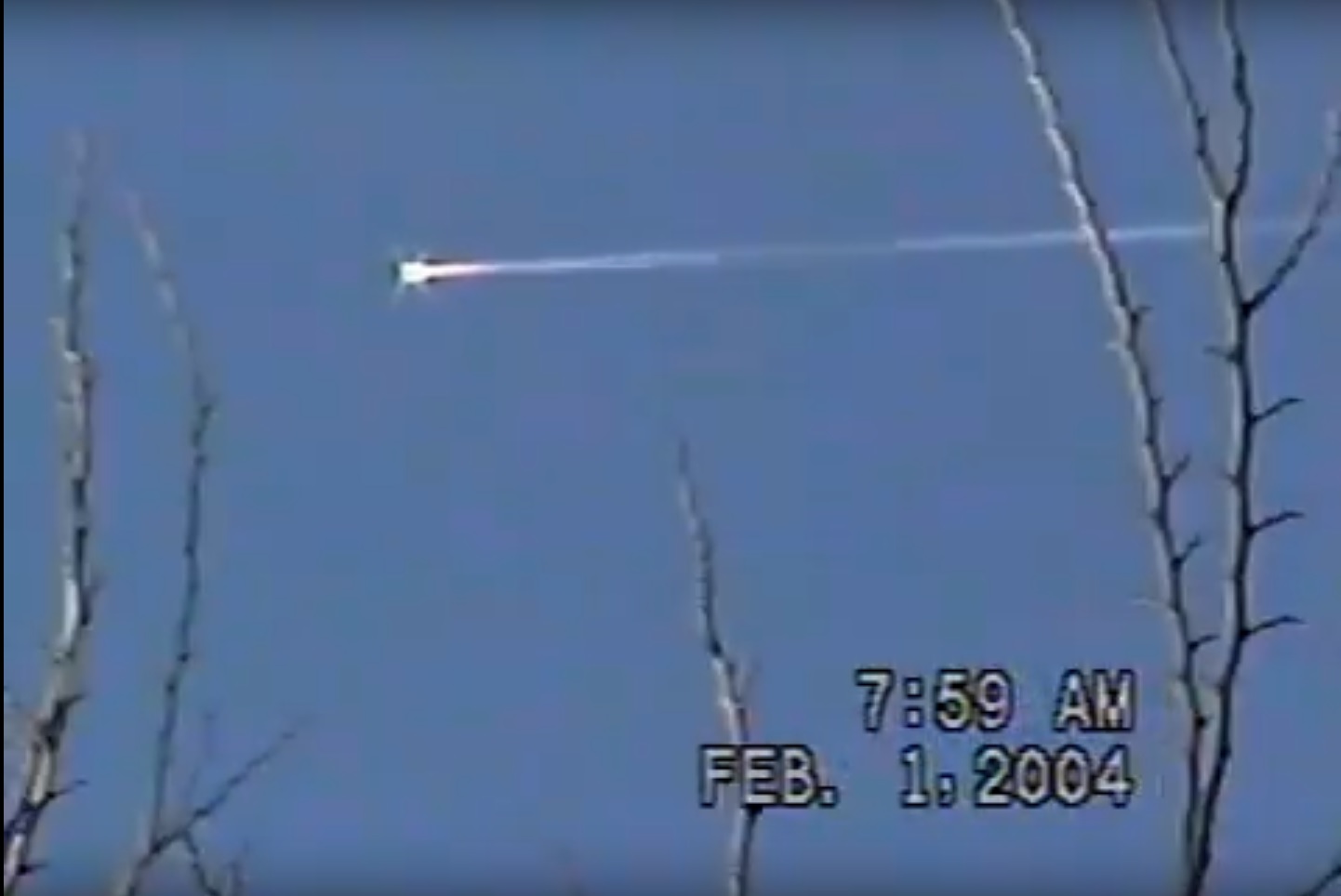

Figure 5 is a screen grab from EOC2-4-0018. For an explanation of the year displayed see the main text.
